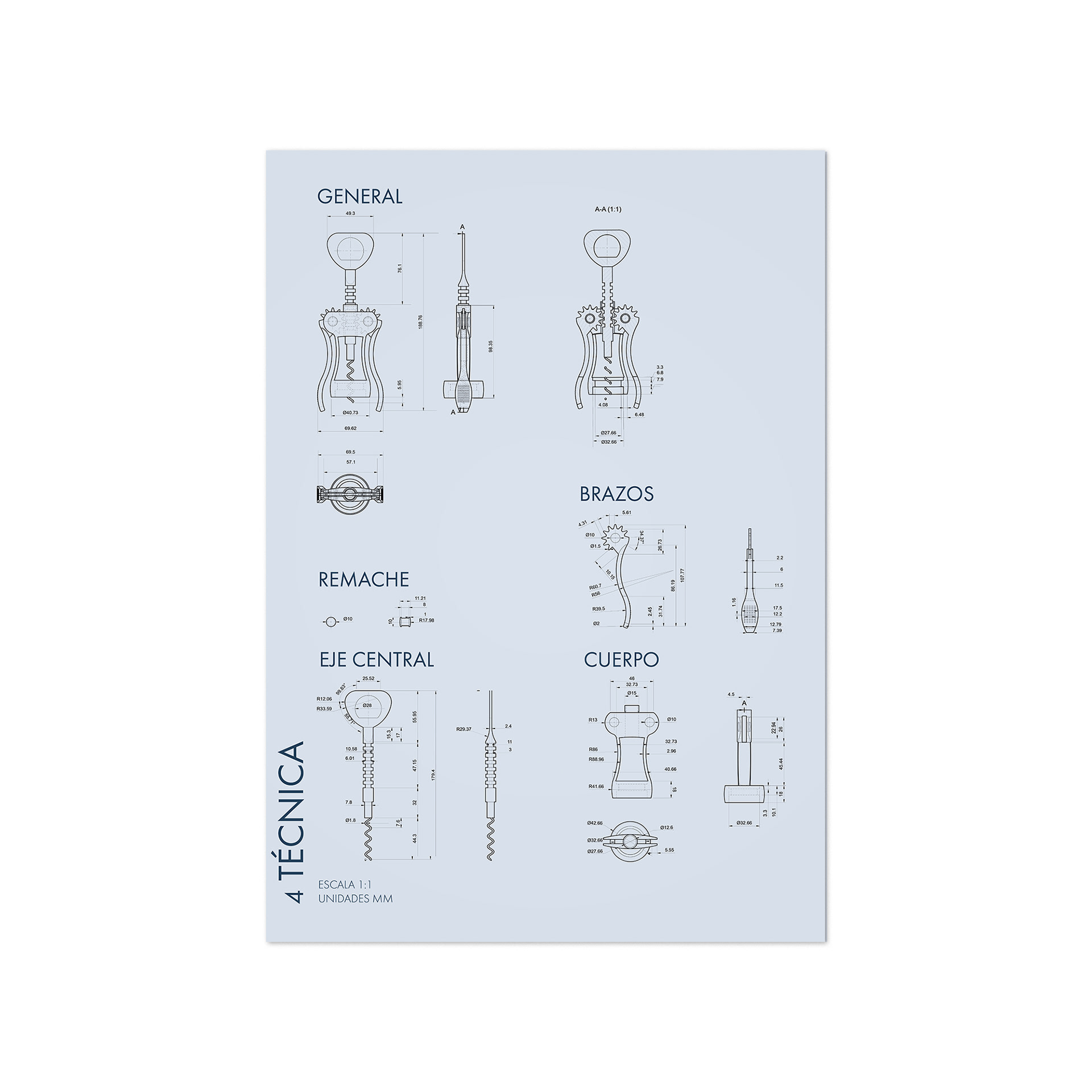

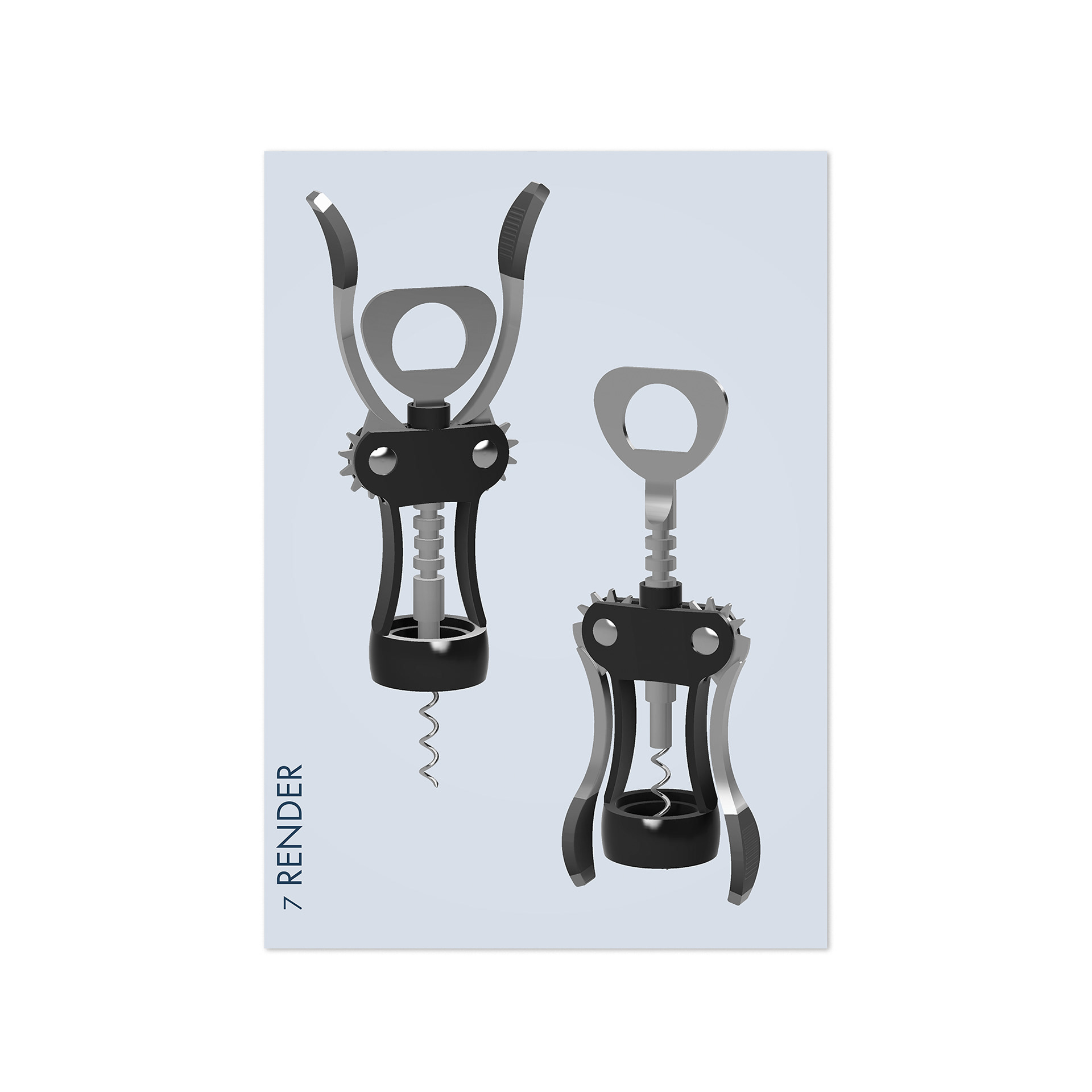

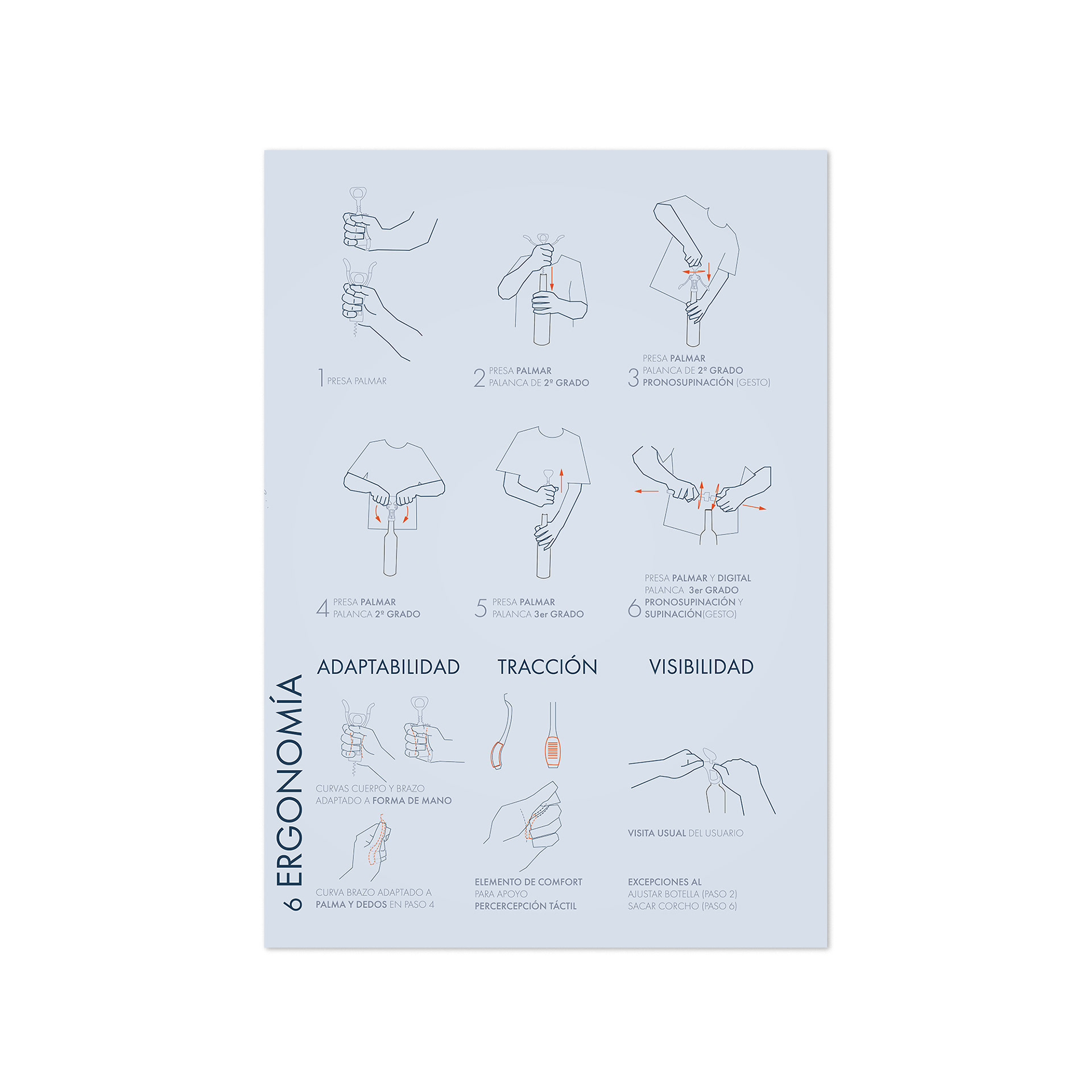

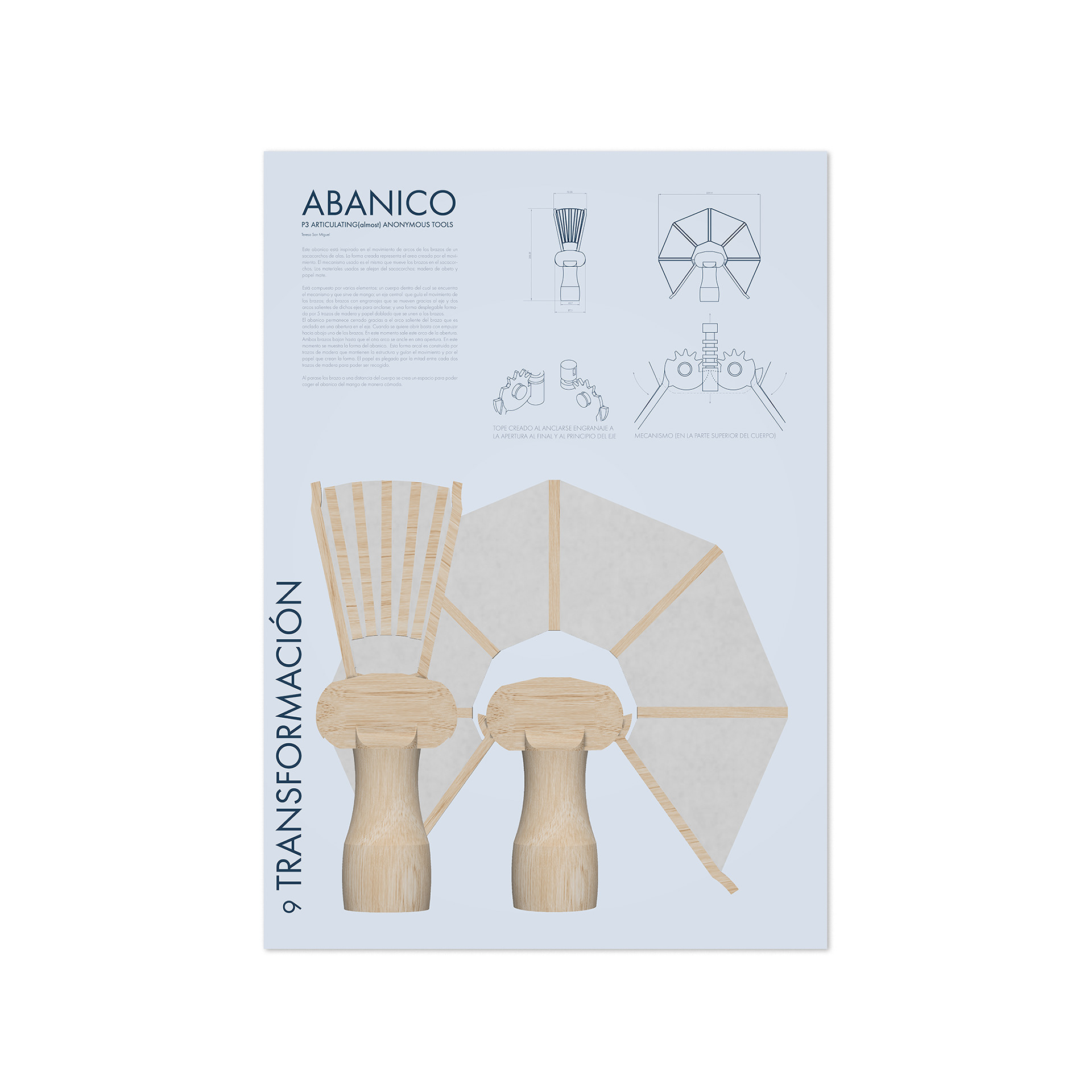

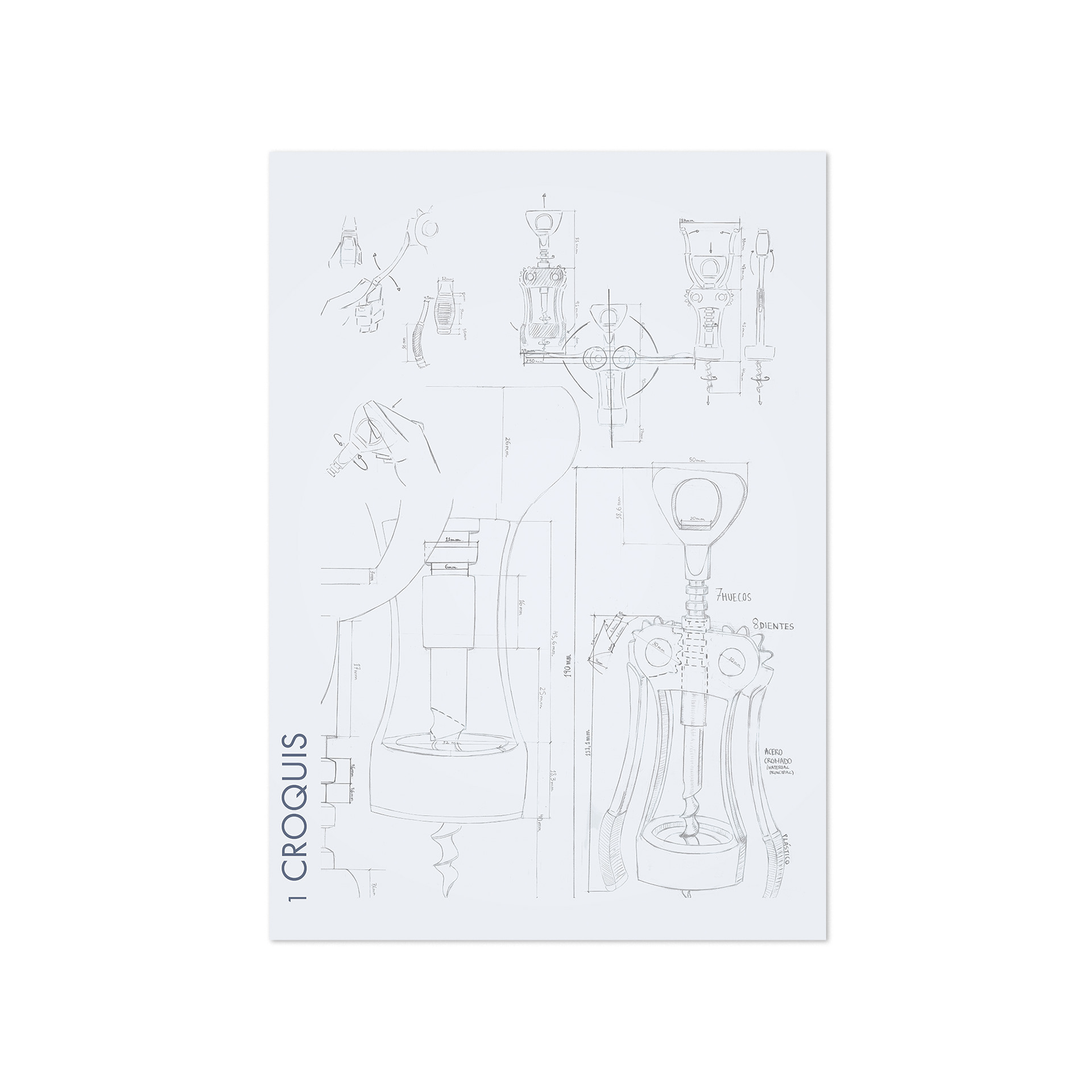

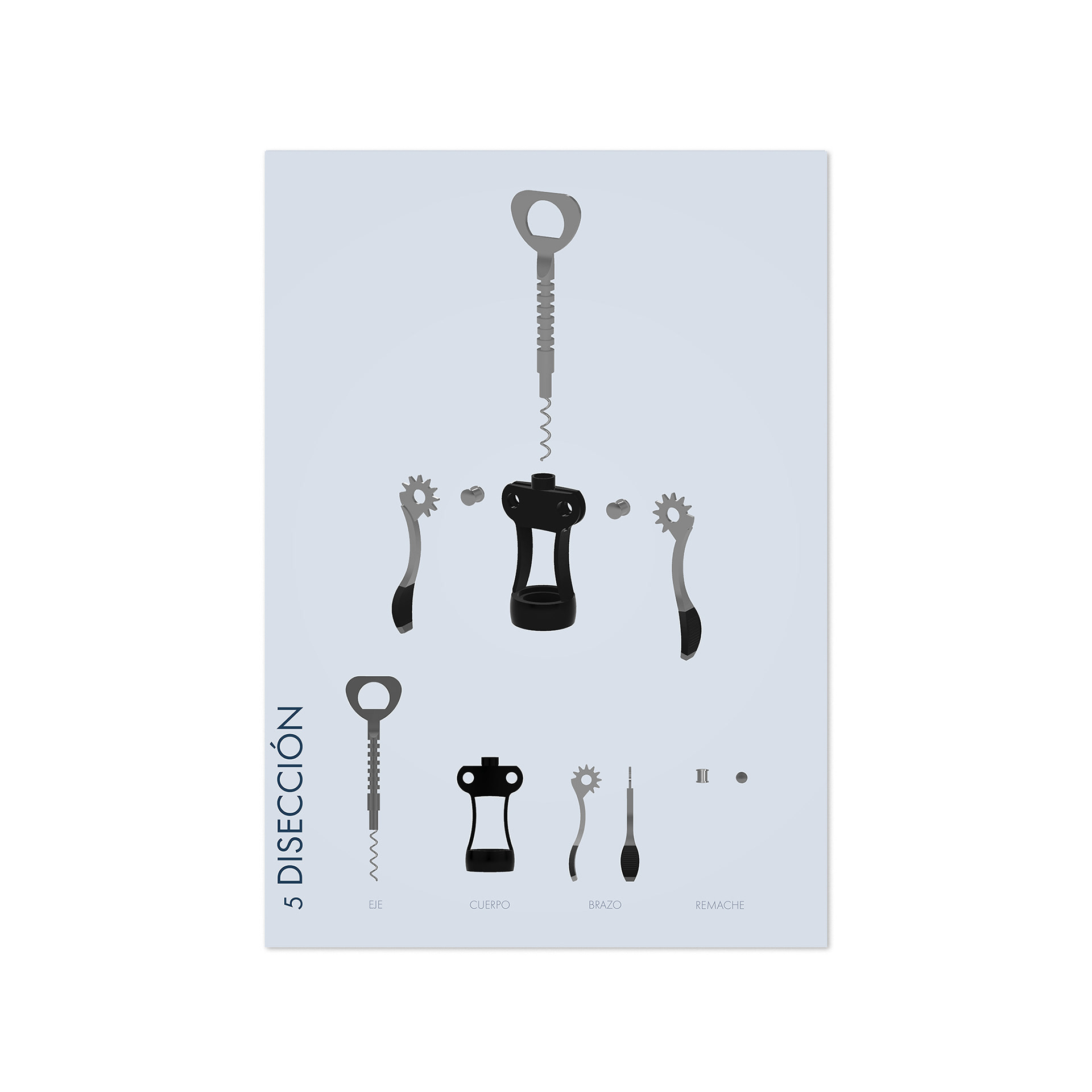

Through graphic and 3D work an in depth analysis of an ordinary articulated object had to be shown. The corkscrew was the object I chose to analyze. I dove into every aspect of it from the more technical to the abstract. Finally, I designed a new object using the same articulation and outside form.
